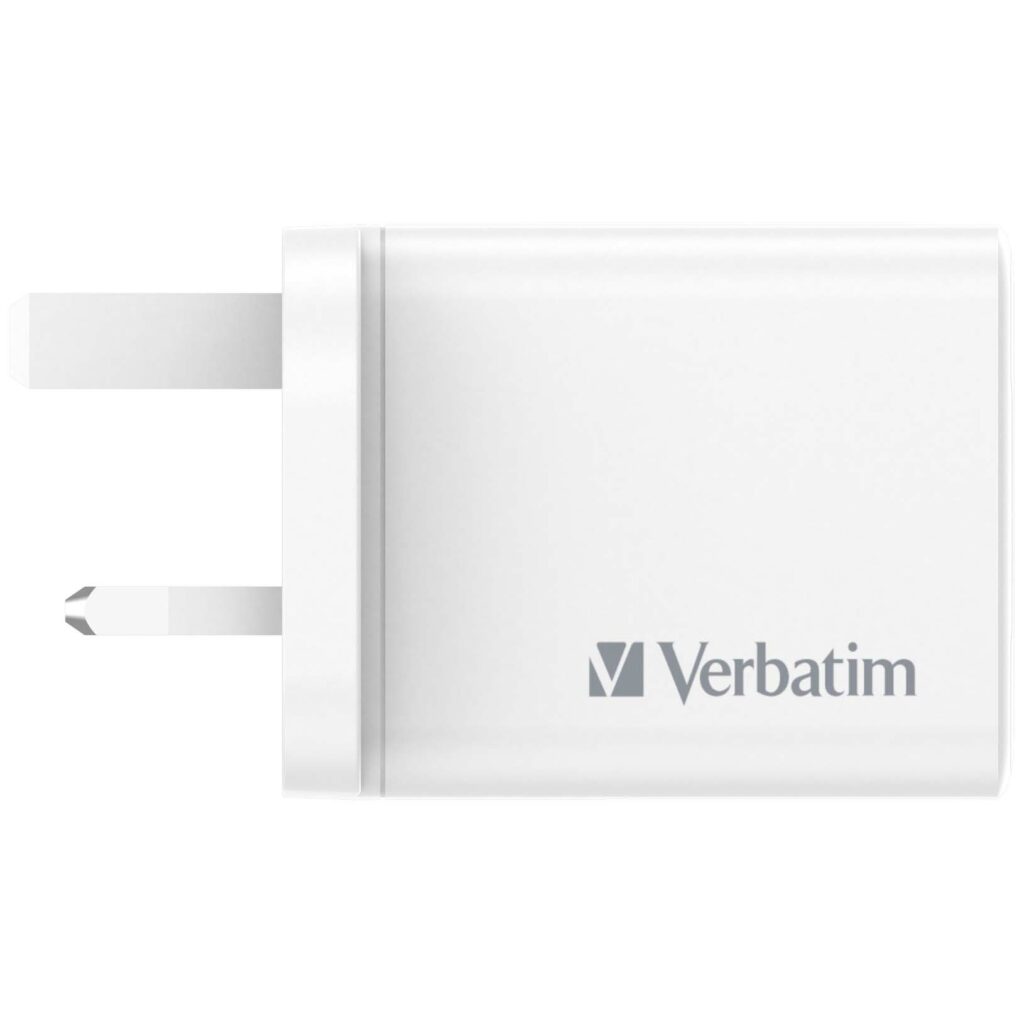

Charge and Screen Share GaN Charger Hub

Product Details

- Utilizes GaN technology with a lightweight and slim design, weighing at only 130g
- Supports Type C PD 3.0 60W for fast charging of devices such as Switch, laptops, tablets, and smartphones
- Acts as the original dock for the Switch, providing a seamless experience of charging and screen sharing
- Supports HDMI output up to 4K/60Hz, delivering detailed and smooth visuals for gaming and movies
- Provides an additional USB-A 2.0 port for charging up to 5W or data transfer up to 480Mbps
- Complies with safety standards of the HKEMSD IEC62368 and Multiple National Safety Certificates

#66895

With advanced GaN technology

The charger hub adopts the next-generation “GaN” technology, featuring a lightweight and slim body, weighing at only 130g. The hub is equipped with 1 Type C PD 3.0 60W port, 1 USB-A 2.0 port and 1 HDMI port supporting up to 4K/60Hz. It combines charging, screen sharing, and data transfer functions in one, saving space and presenting an elegant design.

Turning the charger into a dock for your Nintendo Switch

The GaN Charger Hub features a HDMI port that turns the charger into a dock for your Nintendo Switch, allowing you to connect a TV or monitor with ease. Alternatively, connect your laptop, MacBook or other Type C enables devices to an external display without the need for an additional hub or adaptor. To support the hub function, you will need a Type C to Type C cable with data transfer rate of 10 Gbps or above.

Integrated Charging, Screen Sharing, and Data Transfer Functions

The Charger Hub with HDMI port includes one Type C port that works with the USB PD 3.0 protocol to deliver 60W of power via the Type C port, making it the perfect choice for charging compatible iPhones, smartphones, notebooks & tablets. Additionally, the USB-A 2.0 port on the hub supports up to 5W charging and data transfer at a speed of up to 480Mbps between Type C connected devices and USB-A storage devices (e.g. USB Drive/ SSD). By using the HDMI cable, it can expand your display, offering a 4K/60Hz visual experience for compatible smartphones, tablets, and laptops other than Nintendo Switch.

4 Protection System and Compliance with Multiple Safety Standards

The charger hub is equipped with 4 Protection System, including over current protection, over voltage protection, short circuit protection and over temperature protection. It also gained IEC 62368 from the Hong Kong Electrical and Mechanical Services Department, as well as CE (EU) and RoHS certificates. Additionally, it has purchased global product liability insurance to ensure product quality, stability and safety.

Product Details
Utilizes GaN technology with a lightweight and slim design, weighing at only 130g

Supports Type C PD 3.0 60W for fast charging of devices such as Switch, laptops, tablets, and smartphones

Acts as the original dock for the Switch, providing a seamless experience of charging and screen sharing

Supports HDMI output up to 4K/60Hz, delivering detailed and smooth visuals for gaming and movies

Provides an additional USB-A 2.0 port for charging up to 5W or data transfer up to 480Mbps

Complies with safety standards of the HKEMSD IEC62368 and Multiple National Safety Certificates
Specifications
Input : 100-240 V AC 50/60 Hz 1.5A (Max)

Output：
Type C PD 3.0 – 5Vdc/3A、9Vdc/3A、12Vdc/3A、15Vdc/2.6A、20Vdc/3A (Max. 60 W)
USB-A – 5Vdc/1A (Max. 5W)
Total 65W max.

USB 2.0 Port supports up to 480Mbps data transfer

HDMI Port supports up to 4K/60Hz

Over Current Protection. Over Voltage Protection. Short Circuit Protection. Over Temperature Protection.

Operating temperature：0°C – 40°C

Storage temperature：-20°C – 75°C

Product Dimensions：83 x 48.1 x 47.3 mm

Product Weight：130g

Material：PC Flame resistant material

Warranty: 1-year limited warranty
Pack Contents
1 x GaN Charger Hub

66895_Online User manual
